With TECTRIS® skip loaders you transport skips and containers efficiently and reliably. Successfully proven in the construction and waste management industries and made for harsh practical conditions.
The loading platform of the MEILLER skip loader comes without a vehicle-specific subframe. This results in a low tare weight and permits high payloads.
The high-quality MEILLER hydraulics ensure work operations are fast and delicate. This is complemented by precise and load-independent synchronisation of stabilising jacks and telescoping lifting arms – and this is with very low-noise operation.
MEILLER’s tipper bodies are compatible with all electric trucks from European manufacturers, regardless of whether they are already equipped with a mechanical power take-off (PTO) necessary for the superstructure’s hydraulics or an electric power take-off (E-PTO).
The electric drive offers a clear advantage: hydraulic systems can be operated according to demand, ensuring that the pump or hydraulics only run when the tipper body is in motion hence preventing unnecessary energy consumption.
| Type | AK7 | AK10 | AK14 | AK18 | |
| Nominal load: | 7.4 t | 11 t | 14 t | 18 t | |
| Axles: | 2 axles | 2 axles | 2 axles | 3 axles | |
| Suitable chassis: | 9 - 12 t | 12 - 15 t | up to 20 t | up to 28 t | |
| AK weight: | 2,000 - 2,150 kg | 2,070 - 2,220 kg | 2,990 - 3,210 kg | 3,1205 kg - 4,060 kg | |
| Container type: | DIN 30720 Part 1, DIN 30730-MAP-AKF | DIN 30720 Part 1+Part 2, DIN 30730-MAP-AKF | DIN 30720 Part 1+Part 2, DIN 30730-MAP-AKF, silo container | DIN 30720 Part 1+Part 2, DIN 30730-MAP-AKF, silo container | |

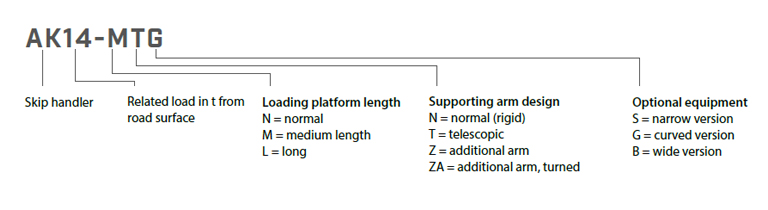

| Support arm types*: | TG | TG | N, T, TG, Z, ZA | N, T, TG, Z, ZA |
*Further information on the support arm types
The MEILLER skip loader programme impresses through its clever details that make work faster, more efficient and safer.
…fast
Intelligent MEILLER features increase the working speed:
…economic
…safe
MEILLER skip loaders guarantee safe operation thanks to many sophisticated solutions:
With the sturdy tipping hooks you empty the container safely. The integrated safety catch protects the container against overturning and slipping out when tipping.
Adapt your chain length with the MEILLER fastener: the practical chain suspension device at the top end of the telescopic arms makes it easy to shorten or lengthen the chain.
MEILLER skip loaders with telescoping equipment come with a control unit with overload control display and emergency control as standard equipment. All control components are installed protected.
N lifting arm:
T lifting arm:
TG lifting arm:
Z lifting arm:
For low height in travel position (e.g. for journeys through underpasses)
ZA lifting arm:
For low height in working position (e.g. picking up skips in halls)
With MEILLER skip loaders you can count on a reliable and appropriate container lock. All MEILLER load securing modules are certified and can be operated with the i.s.a.r.-control radio control unit. The modular concept makes different combinations possible.
Container lock modules
Choose from the different load securing modules. The combination of the BKE and CV modules gives ultimate safety: that is perfect load securing at the press of a button.
With the i.s.a.r.-control remote control you load containers from a safe distance and at a location that gives you the best visibility. With the preprogrammed sequence control processes it is easy to operate at the press of a button.
One button – many processes: very easy with sequence control
With the preprogrammed processes of the i.s.a.r.-control radio control unit you save time and avoid mistakes in the sequence of operating steps. Up to 30 seconds can be saved for each sequence. You start a complete process as easy as this: with a button combination you activate a defined sequence of functions that are executed after each other. You always have full control and can intervene in the sequences at any time.
Our tarpaulin system is the perfect solution for a safe and efficient operation. It allows you to secure your load in the skip in accordance with the legal regulations as well as in a simple and practice-oriented way.
Your benefits:
Video: MEILLER Eco-Kupplung®
The MEILLER Eco-Kupplung® (eco clutch) is the energy saving alternative to engine-driven fixed and variable displacement pumps.The eco clutch allows you to activate and deactivate the hydraulic system when needed. This considerably reduces energy consumption.
Faciliating flexible activation, the MEILLER Eco-Kupplung ® is located between the engine-driven PTO and the hydraulic pump and allows an exact synchronisation of telescopic arms.
*Pictures similar, can include additional equipment.
